Easy, Illustrated Instructions on How to Repair the Lens Mechanism of a Canon Powershot SD750

page 1 | 2 | 3 | 4 | 5 | 6 | 7

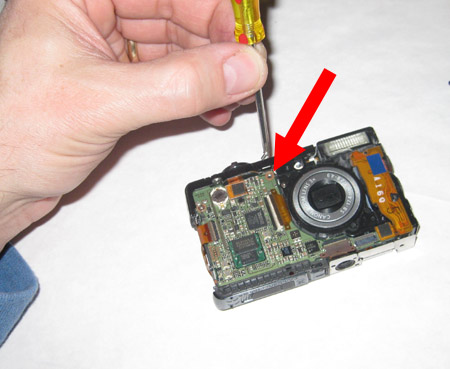

Remove one screw at the top right of the green circuit board, near the shutter button.





The black square cushion on an orange ribbon just below the shutter button is a rectangular electronics connection. Pull it up.

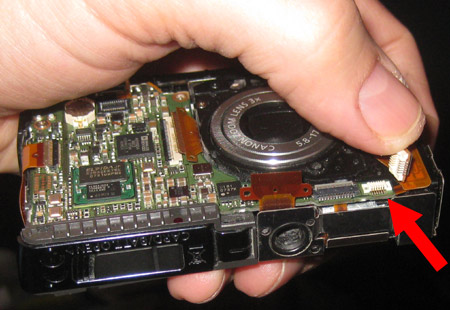

There is one more cushioned connection like this one at the lower right hand corner of the camera front (next to the ribbon connection points). Pull it up.



Remove the screw from the shell top, adjacent to the on/off switch.



This should release the black plastic top "L".



Please continue reading page 5
