Easy, Illustrated Instructions on How to Make a Cheap Silicone Mold with Ordinary Silicone Caulk

page 1 | 2

Then he added a layer of expanding foam and turned it upside-down into a medium wooden crate.

This would be the "mother mold".

He added wooden supports inside and added can foam so that the silicone mold wouldn't distort or collapse as it was filled.

The plastic film kept the silicone from becoming stuck inside the box.

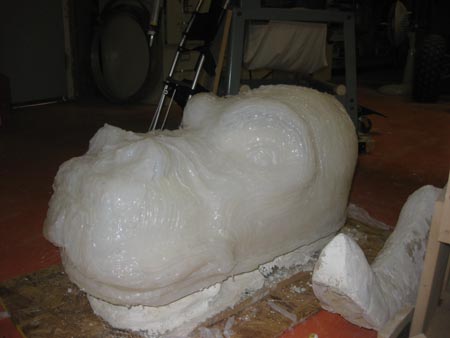

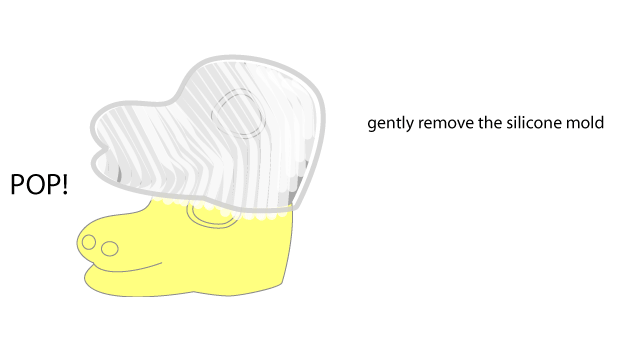

With the mother mold dry and ready, Scott finally removed his original clay model from the silicone.

Contrary to this illustration, he lifted the silicone off the back of the head first, to keep from messing up the details on the face.

Note that his sculpture has very limited undercutting, so he wouldn't have to cut the mold to remove it.

With the silicone bag removed, he cleaned out any remaining clay and plugged up holes with more silicone.

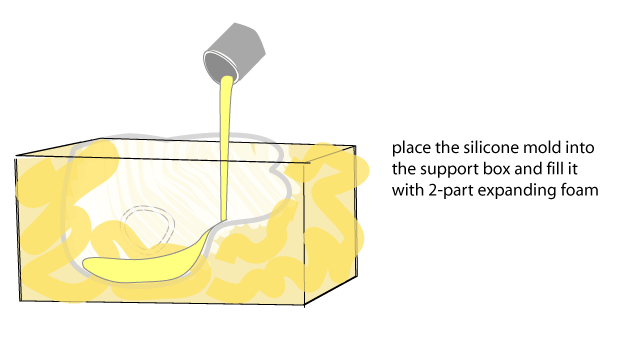

Then he placed it into the mother mold box and applied a mold-release agent.

Next he mixed and poured in some two-part expanding foam. For big projects like this, it is cheaper to buy two-part liquid kits instead of using a bunch of household "Good Stuff" insulating foam cans.

Scott used three smaller pours and waited for each to foam and expand before mixing and adding more.



In about an hour, the foam is rock solid and ready to be removed from the silicone mold.

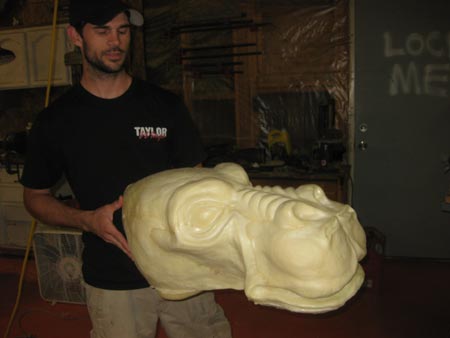

The new foam head looked great, and the mold is ready for re-use.

This amount of expanding foam probably cost about $40, but I'll bet it would work for molding soap, jello, ice, resin and cement. I love this technique because it is so much more manageable than using a liquid mold-making material. It eliminates the need to use a ton of silicone, and there is no mixing!

It does present its own set of problems. Seams between beads of caulk can show up as lines or bubbles on the finished project and tiny details may be lost.

But wow, what a result!
